Panasonic Android 4.0 Ice Cream Sandwich Released Jan 2013 Discontinued

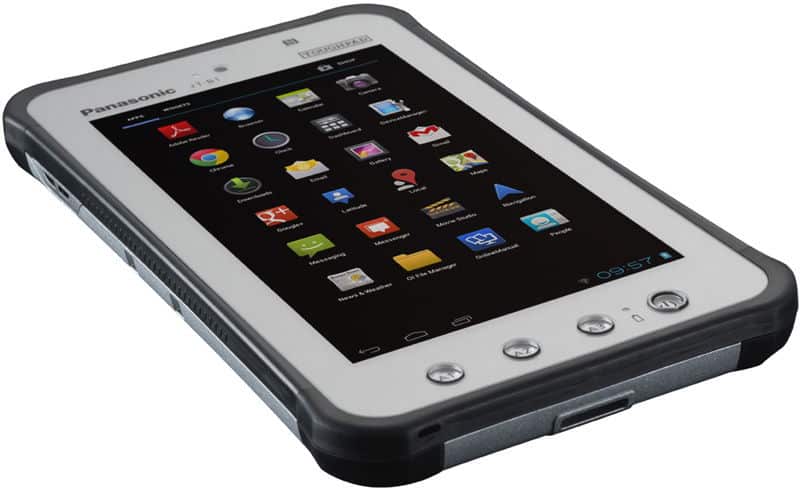

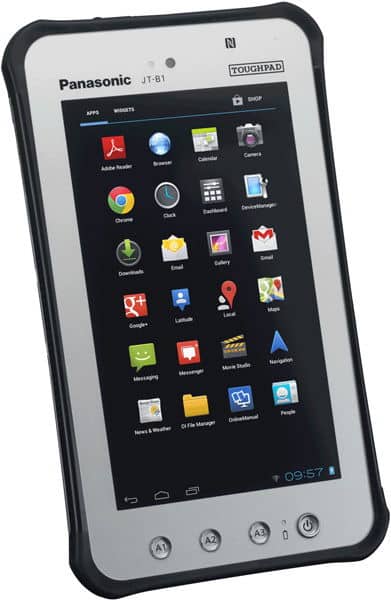

Panasonic Toughbook JT-B1

Android 4.0 Ice Cream Sandwich Operating system

7" Screen size

13MP Main camera

OMAP4460 Dual core Processor

16 GB Storage

5,720 mAh Battery

By category

Key specs

Specifications

Full specs

Overview

Released Jan 2013

Announced —

Price tier —

Also Known As —

Processor Texas Instruments OMAP4460 Dual core

CPU Speed 1500MHz

RAM 1GB

Storage 16 GB

Price (USD) —

Regional Variants —

Warranty 3 Years

Accessories AC Charger, Manual

Software & Support

OS Android

OS at Launch 4.0 Ice Cream Sandwich

Current Version —

OS Updates —

Security Updates —

Custom UI —

Display

Type Color

Technology LCD (TFT)

Size 7"

Resolution 600 × 1024

Pixel Density 170 ppi

Colors 16.7 million

Refresh Rate —

Touch Sampling Rate —

Peak Brightness —

Backlit Illumination

Zoom / Magnification

Always On Display

DC Dimming

DisplayMate Grade —

Multi-touch

Fingerprint Resistant

Sensors Ambient Light, Proximity, Motion / Accelerometer, Gyroscope

Additional Features Capacitive touch screen

Camera — Main

Main Camera 13MP

Flash Yes (LED)

Sensor Name —

Sensor Size —

Focal Length (Main) —

Focal Length (Ultrawide) —

Focal Length (Telephoto) —

Optical Zoom —

Digital Zoom —

Video Resolution —

Video FPS —

Video Length —

Video Formats 3GP / 3GPP, H.264 / AVC, MPEG-4

Features Auto focus

Additional Info -

Camera — Front

Front Camera

Video Recording

Resolution 1MP

Video Resolution —

Video FPS —

Zoom

Optical Zoom —

Digital Zoom —

Features —

Additional Info -

Performance

Chip Texas Instruments OMAP4460 Dual core

Process Node —

GPU —

RAM 1GB

Storage 16 GB

AnTuTu v11 —

Geekbench 6 Single —

Geekbench 6 Multi —

Geekbench 5 Single —

Geekbench 5 Multi —

Battery

Capacity 5,720 mAh

Type Lithium-Ion (Li-Ion)

Removable

Fast Charging —

Wireless Charging —

Comes with Charger —

Video Playback 8 hrs

Internet (WiFi) 8 hrs

Internet (Cellular) —

Standby —

Mixed Usage —

Charge Time 0–100% —

Charged in 30 Min —

GSMArena Score —

Battery Test Source —

Battery Life (Call) —

Battery Life (Video) —

Battery Life (Web) —

Battery Life (Gaming) —

Connectivity

Wi-Fi Wi-Fi a/b/g/n

WiFi Version —

Bluetooth 4.0

Bluetooth Profiles A2DP, AVRCP, OPP/FTP, HID, HSP

Bluetooth Codecs SBC

USB Type Micro-USB 2.0

USB OTG

USB Speed —

NFC

Infrared

Headset Jack 3.5mm

Mobile Hotspot

GPS

GPS Type —

Digital Compass

UWB

Satellite —

Memory Expansion

Expansion Type MicroSD, MicroSDHC

Expansion Capacity 32MB

Cellular

Cellular models only. Wi-Fi-only configurations of this tablet do not include cellular connectivity.

Networks GPRS, EDGE, HSPA+, LTE, No, HSDPA, EV-DO Rev. A

Data 4G/LTE

VoLTE Unknown

WiFi Calling Unknown

Physical SIM No

Dual SIM

eSIM

Design & Build

Material Plastic

Frame Material —

Rear Material —

Colors White

Dimensions 22.1 × 1.8 × 13 cm (8.7 × 0.71 × 5.12 in)

Weight 545g

IP Rating —

Water Resistance Unknown

Fingerprint Sensor No

Rugged Design

iFixit Score —

Parts Availability —

Audio

External Speakers Yes

Dolby Atmos

Hi-Res Audio

GSMArena Loudness —

Speaker Loudness —

Input & Navigation

Stylus Support

Touchscreen

Physical Keyboard

Home Key

Sleep/Wake Key

External Volume

Keypad Screen Lock

Screen Orientation Lock

Safety

SAR 1.313 W/kg

Hearing Aid Compatible

TTY/TDD

Additional Information

Graphics: Yes
Backlit Illumination: Yes
Zoom / Magnification: Yes
Screen Orientation Lock: Yes
Predictive Text Entry: No
Web Browser: Yes
Email Client: Yes
Email Protocols: POP3, IMAP, SMTP, Microsoft Exchange
PC Synchronization: Yes
Audio Formats: AAC, AAC+, eAAC+, MIDI, MP3, WMA, WAV
Video Playback Formats: 3GP / 3GPP, H.264 / AVC, MPEG-4
Streaming Video: Yes
Custom Ringtones: Yes
Vibration Alert: Yes
Viewable document types: XLS, PPT, PPTX, DOC, DOCX, PDF
Games: Downloadable
Apps: Downloadable
Included Software / Apps: –
Calendar, World Clock, Alarm, Calculator, Maps, Voice Memos / Recorder

Additional Comments —

What people actually want to know

When was the Panasonic Toughbook JT-B1 released?

The Panasonic Toughbook JT-B1 was released on January 9, 2013.

How long does the battery last on the Panasonic Toughbook JT-B1?

The Panasonic Toughbook JT-B1 has a 5,720 mAh battery.

Does the Panasonic Toughbook JT-B1 support wireless charging?

No, the Panasonic Toughbook JT-B1 does not support wireless charging.

Does the Panasonic Toughbook JT-B1 have a headphone jack?

Yes, the Panasonic Toughbook JT-B1 has a 3.5mm headphone jack.

Does the Panasonic Toughbook JT-B1 have NFC?

No, the Panasonic Toughbook JT-B1 does not have NFC. Contactless payments and tap-to-pair will not be available.

Where can I get support for the Panasonic Toughbook JT-B1?

Visit Panasonic's official support page for warranty info, repairs, and troubleshooting.

Where can I download the Panasonic Toughbook JT-B1 manual?

You can view and download the Panasonic Toughbook JT-B1 manual on our dedicated manual page.
